Name: Tiantai 60HL 6000L Stainless Steel 5 Vessel Commercial Brewery Turnkey Factory Equipment Equipment Brewhouse Beer Brewing System
Brand: Tiantai 60HL 6000L Stainless Steel 5 Vessel Commercial Brewery Turnkey Factory Equipment Equipment Brewhouse Beer Brewing System
SKU: BS-6000L
Price: 1 USD
Availability: InStock
Rating: 4.7 (176 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Processing: Other

Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food & Beverage Shops, Brewery, Microbrewery, Nanobrewery, Brewpub

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, Colombia, South Africa, Uzbekistan, Japan, Malaysia, Austra

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 5 years

Core Components: Pressure vessel

Condition: New

Model Number: BS-6000L

Voltage: 220V/380V/400V/415V or as per request

Power: 750W

Weight: 4300 KG

Dimension(L*W*H): 9000*6500*4600mm

Processing Types: Beer

Warranty: 5 years

Function: Beer Brewing

Application: Commercial Brewery, Micro Brewery

Capacity: 6000L, 60hl, 6000 liters, 6000 litres

Material: SUS304

Heating: Steam heated

Brewhouse Structure: Five Vessel, 5 Vessel

Control Unit: PID Instrumental, or Automatic PLC With Siemens Touch Screen

Motor Brand: WEG, ABB, or as per request

Interior Finish: Acid pickled and passivated

Polishing Precision: 0.2Î¼m to 0.4Î¼m

基本情報

Model Number: BS-6000L

お支払配送条件

Packaging Details: Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL

Supply Ability: 10 Set/Sets per Month

製品の説明

Product Description

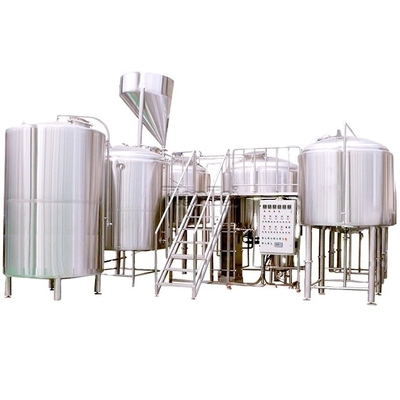

6000L Four Vessel Steam Heated Brewhouse Double Jacketed Fermenters

60HL Turnkey Commercial Micro Brewery Equipment

Tiantai 6000L Beer Brewing Equipment is designed for brewing craft beer with commercial purposes for nanobrewery, microbrewery, brewpub, taproom and restaurants. The brewers will find it easy to brew an outstanding full-bodied beers like Ale, Lager, Stout, IPA, etc. by using our brewery equipment under guidance.

Tiantai offers the complete turn-key solutions consisting of malt milling unit, brewhouse unit, beer fermentation unit, largering unit, glycol chilling unit, electric control unit, CIP cleaning unit, beer filtration unit, water treatment unit, beer bottling unit, or beer kegging unit, or beer canning unit.

Core Components

5-Vessels Brewhouse Unit
1*6000L Mash Tun

1*3000L Cook Tun

1*6000L Lauter Tun
1*6000L Kettle Tun

1*6000L Whirlpool Tun
1*120HL Hot Liquor Tank

5*15m3/h Centrifugal Pumps
Double Jacketed Fermentation Unit
4*120HL Conical Beer Fermenters
1*120HL Bright Beer Tank
Glycol Chilling Unit
1*6000L Glycol Water Tank

1*120HL Cold Liquor Tank
2*15HP Chillers
1*8m3/h Glycol Water Pump
Electric Control Unit
Brewhouse Instrumental Control Panel

Fermentation Instrumental Control Panel

Specification

Brewhouse Capacity	6000L per brew
Heating	Steam heated
Brewhouse Structure	5 Vessel, Five Vessel
Materials	SUS304 stainless steel (304L, 316, 316L or red copper is also available as per request.)
Interior Finish	Completely acid pickled and passivated
Working Pressure	Atmospheric
Material Interior and Exterior Shell	304 Stainless Steel
Polishing Precision of Interior Finish	0.2μm to 0.4μm
Insulation Material of Brewhouse	Rock wool
Insulation Material of Fermenters/BBTs	Polyurethane (PU)
Steam Jackets	Dimple plates on bottom, side wall
Jacket Working Pressure	＜2bar
CIP Spraying Ball	360° Rotary CIP ball on top

Details Images

Recommend Products

Why Choose Us

Endorsement From 1,000+ Breweries Worldwide

Since 2012, Tiantai has served more than 1,000 breweries from over 80 countries worldwide.

The praises and good comments from our clients have greatly help Tiantai step into the top-class suppliers of beer brewing equipment in China. With their great supports, Tiantai keeps promoting himself toward a higher goal of the worldwide famous brands.

Company Profile

Shandong Tiantai Beer Equipment Co., Ltd. (shortened as Tiantai) is a China-based manufacturer and exporter of beer brewing equipment since 2012. As an emerging and prospective competitor, Tiantai is more than a supplier to offer the brewery tanks connected by piping and fittings, but a complete-solution provider to operate the turnkey beer brewing system with custom designs for the craft brewers all over the world.

Tiantai positions himself as a specialized manufacturer of the commercial brewery equipment. With aims at helping brewers all over the world to brew craft beers to perfection, Tiantai is endeavoring to improving every tiny details of our brewing equipment to meet their increasingly higher requirements. Tiantai beer brewing system is prepared for those who want their beers at highest quality and best flavor.

Tiantai keeps focusing on offering clients with high quality equipment and superior services which allow the brewers to
minimize the cost but maximize the profits on operating our brewing systems and to produce better beers in wide range of styles.

Packing & Delivery
